Driver IC
-
Status:Available

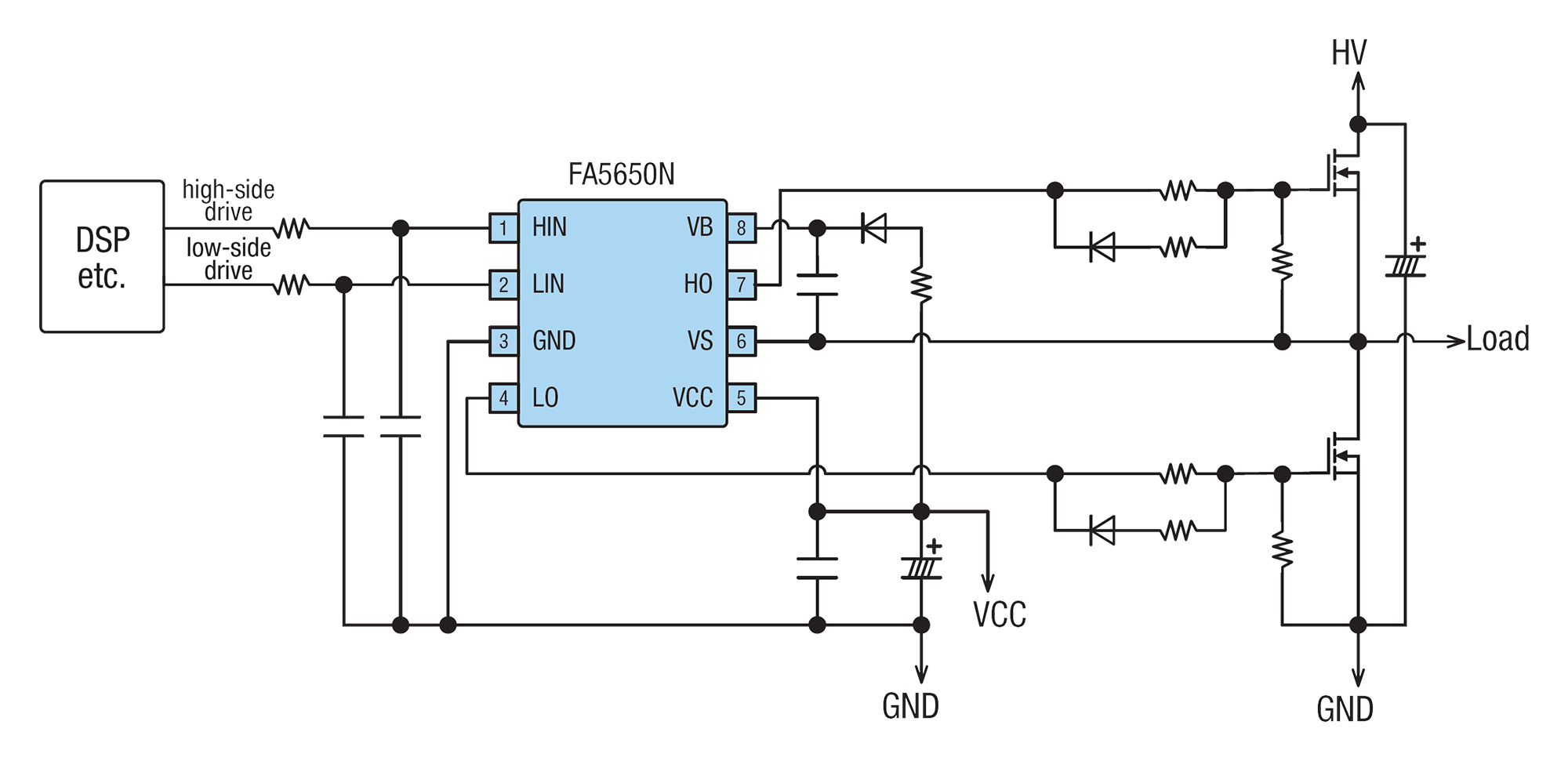

2-input 2-output high-side low-side driver
Features
- High negative voltage tolerance for VS pin
- Wide range of power supply voltages up to 30 V
- Supports 3.3 V logical input
- Built-in power supply undervoltage protection
- High noise immunity with dVs/dt tolerance of 50 kV/us
- High-speed response: input/output delay time 125 ns (typ)
Applications
- switching power supply
Specifications
| Number of inputs and outputs | 2 |
|---|---|
| High side floating supply voltage (V) | 830V |
| Output current (A) | -1.4A/1.8A |
| Power supply voltage max(V) | 30 |
| Maximum operating frequency (kHz) | 500kHz |
| Input/output delay (ns) | 125ns |
| Input threshold voltage | Logic"1" 2.1V, Logic"0" 1.1V |
| Package | SOP-8 |
Documentation Tools
| Datasheet | FA5650N |
|---|---|
| Selection Guide | Power Supply Control IC Selection Guide |
