DC/DC Power Supply Control ICs
-
Status:Available
2ch output PWM type DC-DC converter control IC

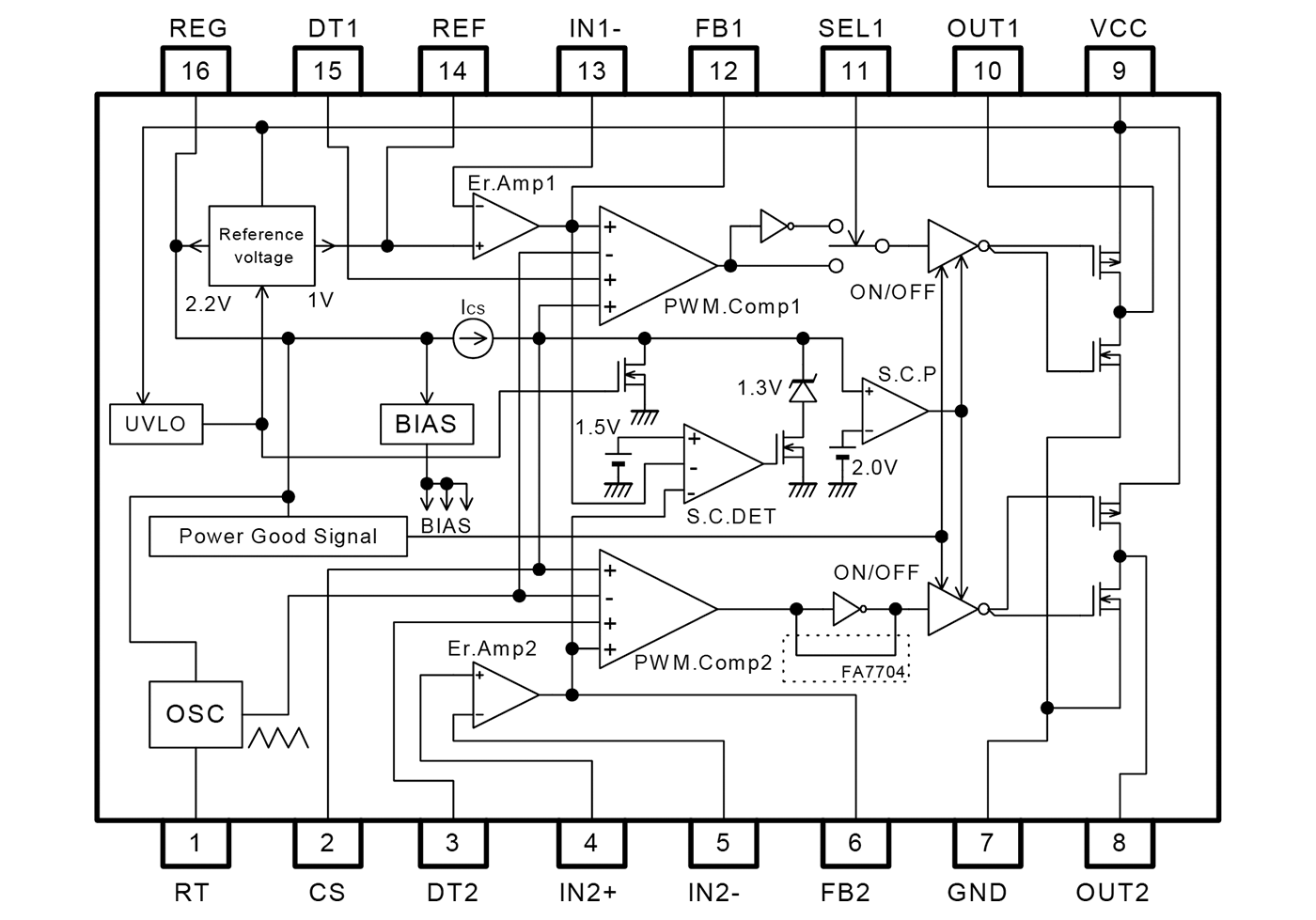

Features
- Wide power supply voltage range: VCC = 2.5 to 30 V
- Capable of directly driving MOSFET
- Capable of P/Nch drive switching for drive elements (ch1 only)
- Low current consumption enabled by CMOS process, during operation: 1.8 mA (typ.)
- 2ch PWM control IC
- Capable of high-frequency operation: 50 kHz to 1 MHz
- Operation frequency setting using only timing resistor
- Capable of soft start setting
- Capable of setting maximum duty limit for each channel
- Built-in low-voltage malfunction prevention function
- High precision reference voltage VREF: 1.00 V ±1%, VB: 1.00 ±2%, VREG: 2.20 V ±2%
- Built-in timer latch type output short-circuit protection circuit
- Compact and thin package: TSSOP-16

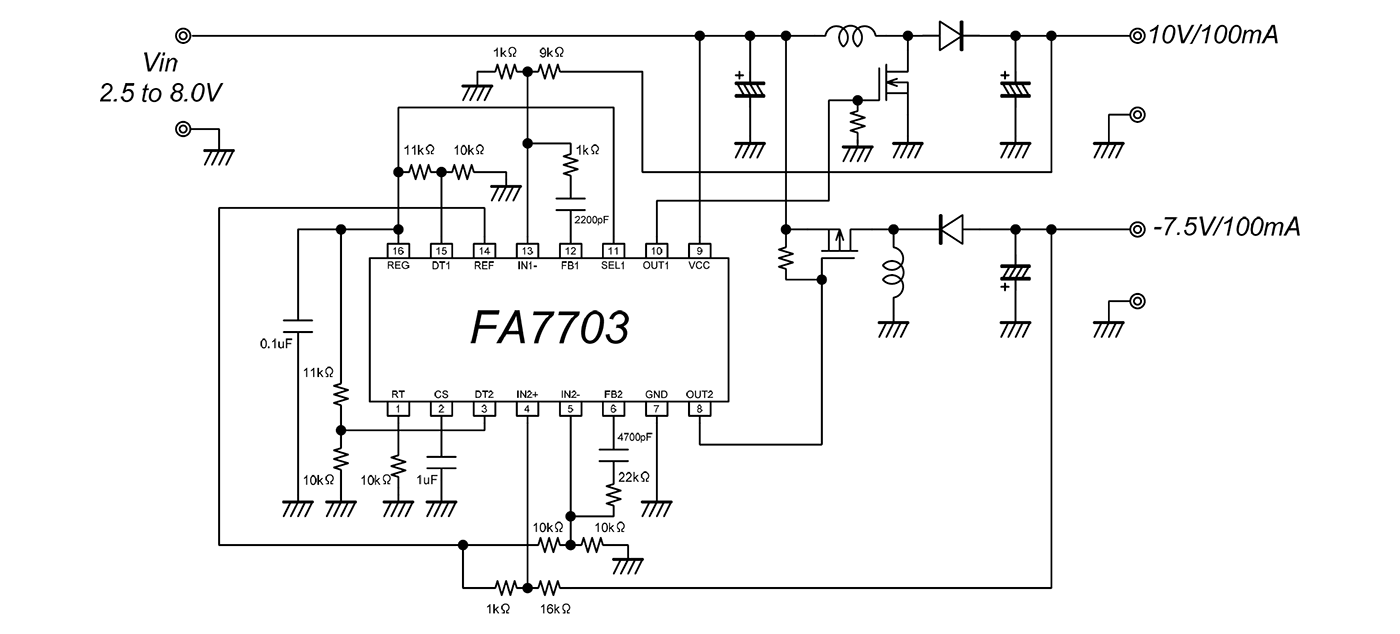

Applications
- switching power supply
Specifications
| Applied circuit | Boost, Buck, Flyback, Inverting |
|---|---|
| Number of outputs | 2 |
| Built-in power MOSFET | Nothing |
| Operating frequency (kHz) | 50k to 1MHz |
| Max Duty(%) | External settings |
| VCC voltage(V) | 2.5 to 28 |
| Protection function | Timer latch, short-circuit protection |
| Package | TSSOP-16 |
